• Motor 1.5Hp Three Phase
• Model: 4ST6-11
• Type: Submersible
• Voltage: 220V/50Hz
• Power: 1125W (1.5Hp)

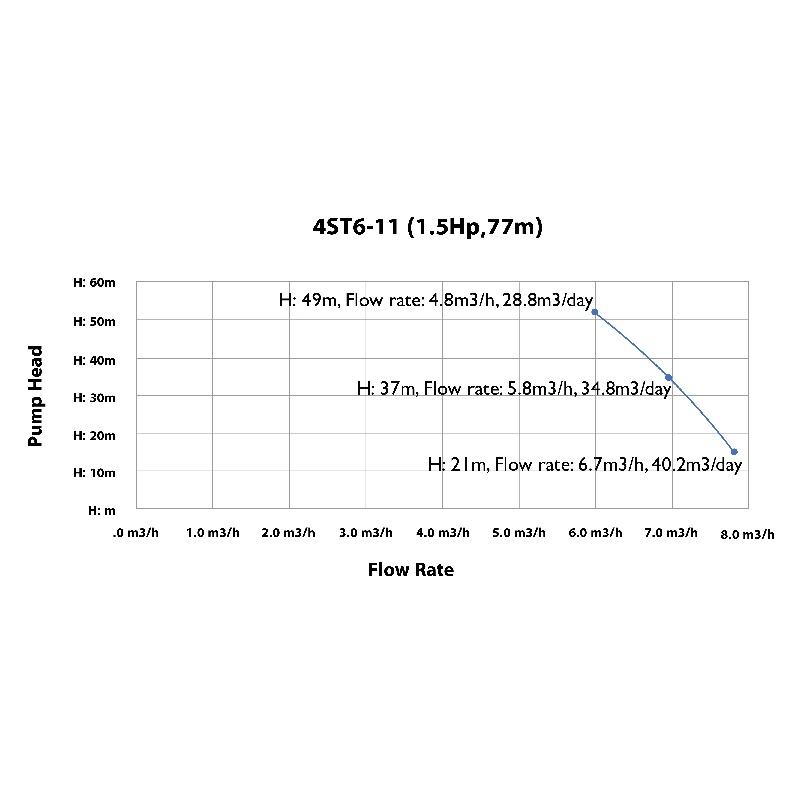

• Max. Flow rate: 8.4m3/h
• Max. Head: 77m
• Outlet Size:  49mm (1.5")
• Diameter: 4" (101.6mm)
• 1.5m cable with MC4 connector
• Water level sensors

Working Conditions:

• Speed range: 2900 rpm.
• Fluid temperature range: 0℃~40℃.
• Max. Working pressure: 3.5 bar.
• Ambient temperature permissible up to: 50℃.
• Voltage range: Three phase: 350V~415V/50Hz.
• Protection class: IP68.

Application:

• For water supply from wells or reservoirs.
• For domestic use, for civil and industrial applications.
• For garden use and irrigation.
