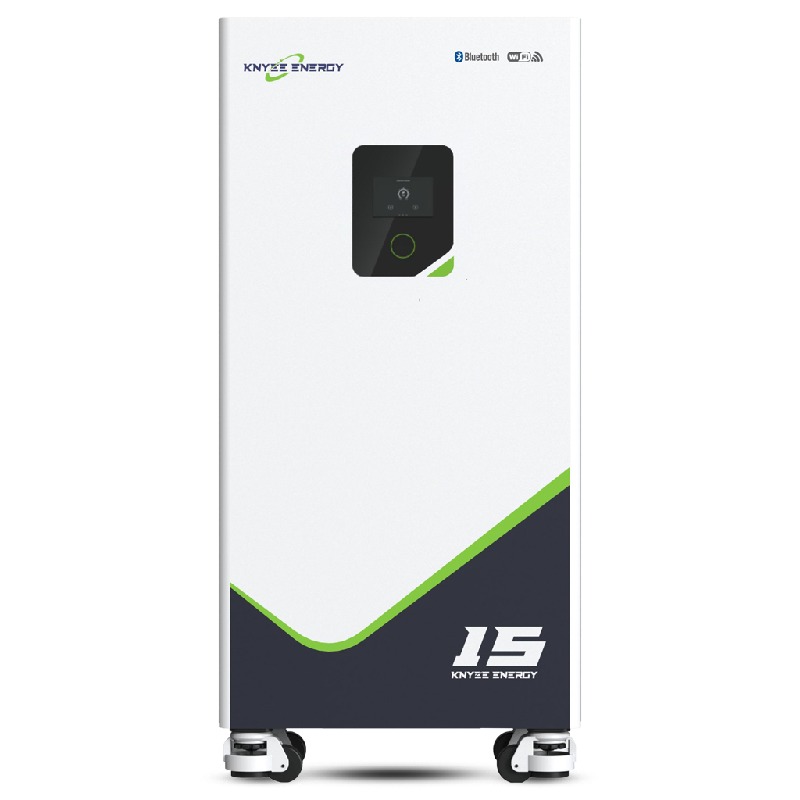

Lithium Battery 15.36kWh
Basic Information
- Nominal Voltage: 51.2V DC
- Voltage Range: 40V-58.4V
- Nominal Capacity: 300Ah
- Rated Capacity: 15.36kWh
- Max. Number of Parallel Connections: 32
- Cycle Life: 6000 cycles (25oC@80% DOD)
- Protection Mechanism: Temperature Protection/Over-current Protection/Short-circuit Protection Over-charge Protection /Over-discharge Protection/Low-voltage Protection
Charging Parameters
- Recommended Charging Current: 100A
- Max. Charging Current: 200A
- Recommended Charging Voltage: 58V
- Max. Charging Voltage: 58.4V
Discharging Parameters
- Recommended Discharging Current: 100A
- Max. Discharging Current: 200A
- Recommended Battery Discharging Cut-off Voltage: 44V
- Battery Cut-off Voltage: 43.2V
- Battery Recovery Voltage: 48V
- Product Functions
- Screen Type: Tauch Screen
- Communication: Bluetooth + Wifi
- Function: Auto-dialling communication
General Parameters
- Dimension: 900*460*245mm
- Protection Rating: IP20
- Net Weight: 115kg
- Shell Material: Sheet Metal
